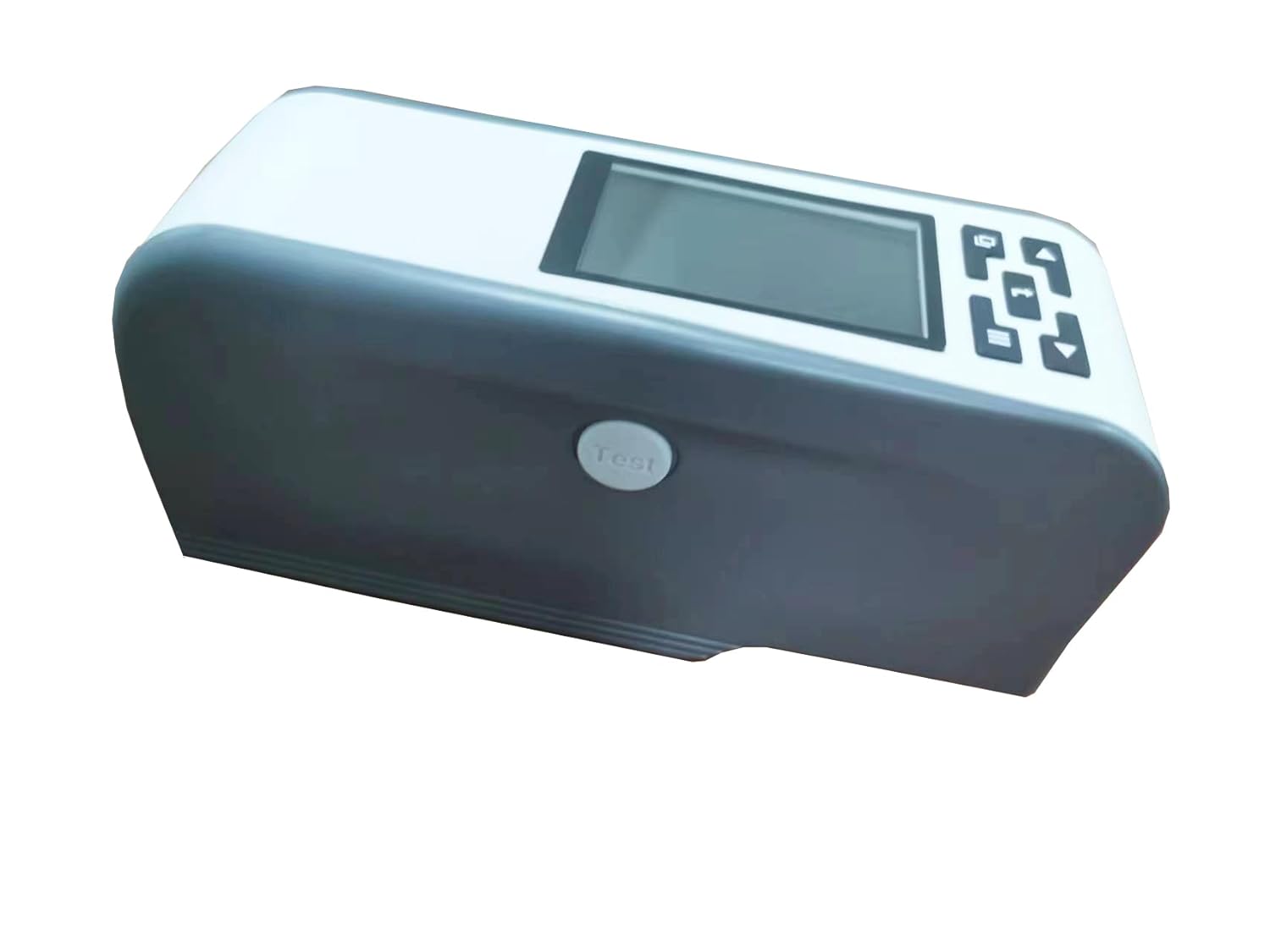

Lab Colorimeters Color Meter Color Difference Tester with Measuring Caliber 8mm WF32 Specially for Flat Surface with Illumination Condition 8/d TFT True Color Display Screen Data Storage

WF colorimeter includes a series of precise, stable colorimeters,. Through accumulating years of designing and researching, it can be applicable in textile, printing and dyeing, clothing, footwear,etc. Technical Specifications * Model: WF32 (8mm) * Display Mode: CIELAB.CIELCH.CIEXYZ.CIELUV.HunterLAB.sRGB * Color Difference Formula: △E*ab、△ECMC、△EISO、△ECIE94、△EFCMⅡ、△ELuv、△Ehunter、△EsRGB * Yellowness and Whiteness: Ganci whiteness. ISO brightness. YI yellowness * Illumination Condition: CIE Recommendation:8/d * Light Source: LED blue excitation * Sensor: Photodiode array * Measurement Caliber: φ8mm * Measurement Condition: Observer:CIE 10°Standard observer, Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) , Contain light way:SCI SCE * Measurement Range: L: 0 to 100 * Repeated Accuracy: E<0.03 (take the deviation average after 30 times measuring the whiteboard) * Table Difference: E<0.2 * Measurement Interval: 0.5 Sec. * Average Measuring Function: Average measuring frequency: 1-32 times * Color Simulation Function: yes *Storage Capacity:Type sample data : 100 with testing sample data:20000, Whiteness/yellowness data: 200 * Quality Control Software: (Color-Analysis System) software * Battery: Li-ion battery, 5000 times Measurement * Lifetime of Bulb: 5 years more than 1.6 million measurements * Display Screen: TFT true color 2.8inch(16:9) Resolution ratio:400x240 * Interface of External: USB2.0 (USB-B)- data communication with (color analysis system)software RS-232 (115200bps)- connected with micro printer * Weight: 700g; Size: 199*68*90mm * Standard Accessories: Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD(Color analysis software)/User manual/Warranty card * Optional Accessories: Flour measuring device/Liquid measuring device/Micro printer

• ◆ Caliber 8mm version is a general-purpose color difference meter, mostly used on flat surface considering the general method for detecting color, all walks of life habit, and the measuring caliber requirements of various materials.
• ◆ WF32 has eight kinds of measuring light source (A, D50, D65, C, F2, F7, F11 and F12);Illumination Condition: CIE Recommendation:8/d; Yellowness and Whiteness: Ganci whiteness. ISO brightness. YI yellowness
• ◆ Six kinds of color modes (CIE1976LAB, CIEXYZ, CIELUV, HunterLAB, sRGB, white yellowness) ;Measurement Condition: Observer:CIE 10°Standard observer, Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) , Contain light way:SCI SCE
• ◆ Eight kinds of color difference formula (△ E * ab, △ ECMC, △ EISO, △ ECIE94, △ EFCM Ⅱ, △ ELuv, △ Ehunter, △ EsRGB).
• ◆ 8mm caliber version provides great convenience and trustworthy reliability for all industry to discuss the color technology, because of its versatility, its tiny table difference, and stability.
