ELING 85mm (3 3/8'') 2 Gauge Set GPS Speedometer 160MPH Speedo Gauge Odometer Tachometer 8000RPM Meter with Hour Meter Backlights 12Volt 24Volt Waterproof for Auto Truck Yachts
4.4 (132 items)
Limited Time Sale$58.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208101981 | Release Date | 2026/03/22 | List Price | $39.19 | Model Number | 208101981 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

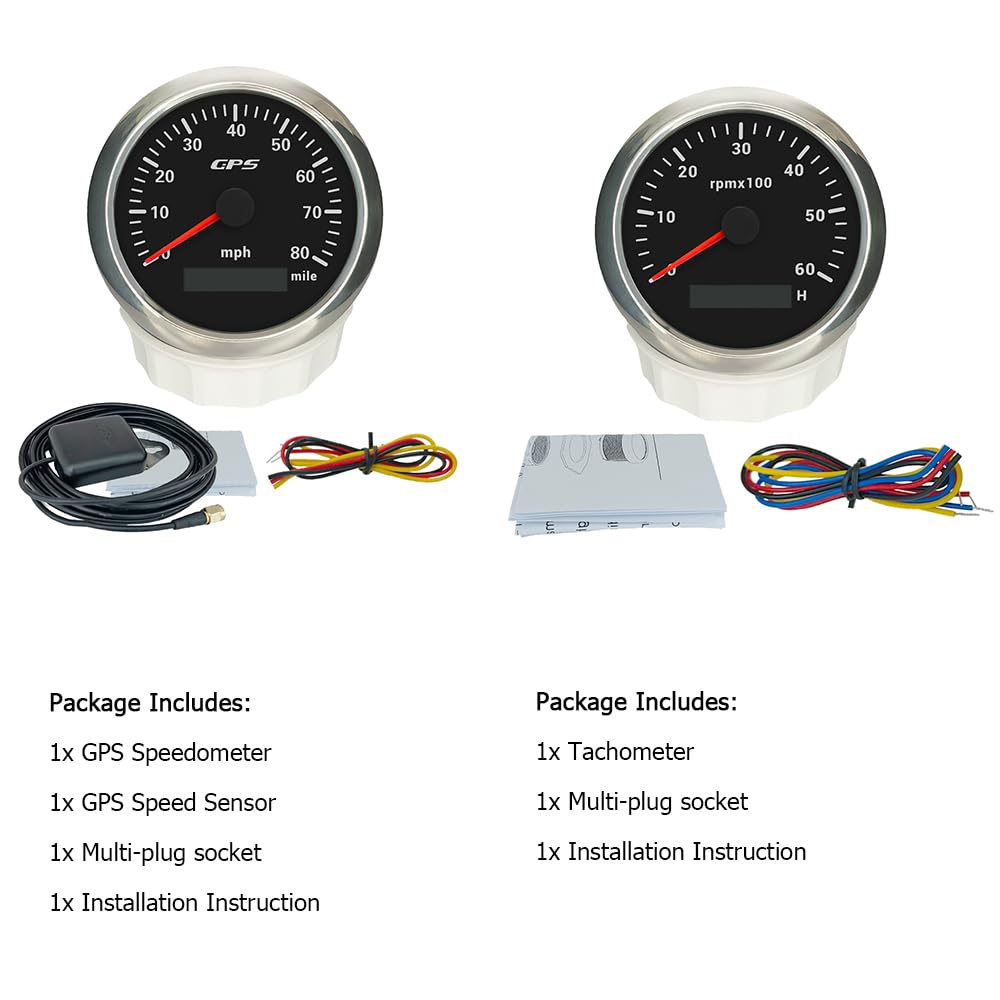

Feature: -High-brightness LED backlight. -316 stainless steel for long-term use even in acid-base, humid environment. -IP67 waterproof and dust-proof grade. -With curved glass (with anti-fog function). -Suitable for all kinds of vehicle modification. -Using stepper motor drive pointer, display accurately. - Backlight:7 Backlights available (red, green, blue, white, yellow, cyan, purple) - Operating Temperature: -30℃ ~ 75℃ - Storage Temperature: -40℃ ~ 80℃ GPS Speedometer Specification: - Installation Diameter: Φ85mm or 3-3/8" - Indication Range: 0-160MPH - Function: Current speed and accumulative ODO (record the mileage after power off) - - ODO can be reset to 0, not to any value. - Material: Stainless Steel 316L Bezel + Anti-fog Glass - Working Current: ≤100mA- Signal: GPS - Working Voltage: 9~32V DC GPS Speedometer Package Includes: 1X GPS Speedometer 1X GPS Antenna 1X multi-plug socket 1X Installation Instruction Tachometer Specification: - Installation Dimension: 85mm - Signal : Pulse -Indicating Range: 0-8000RPM- Working voltage: 9-32VDC - Working current: ＜120mA - Engine hours: 0.0-99999.9H - Functions: current tacho/RPM and adjustable hour Tachometer Package Includes: 1X Tachometer 1X multi-plug socket 1X Installation Instruction
- Gauge Set-GPS Speedometer, Tachometer. 7 Backlights available (red, green, blue, white, yellow, cyan, purple)
- Gauge Set-GPS speedometer indicating range: 0-160MPH, Tachometer indicating Range: 0-8000RPM

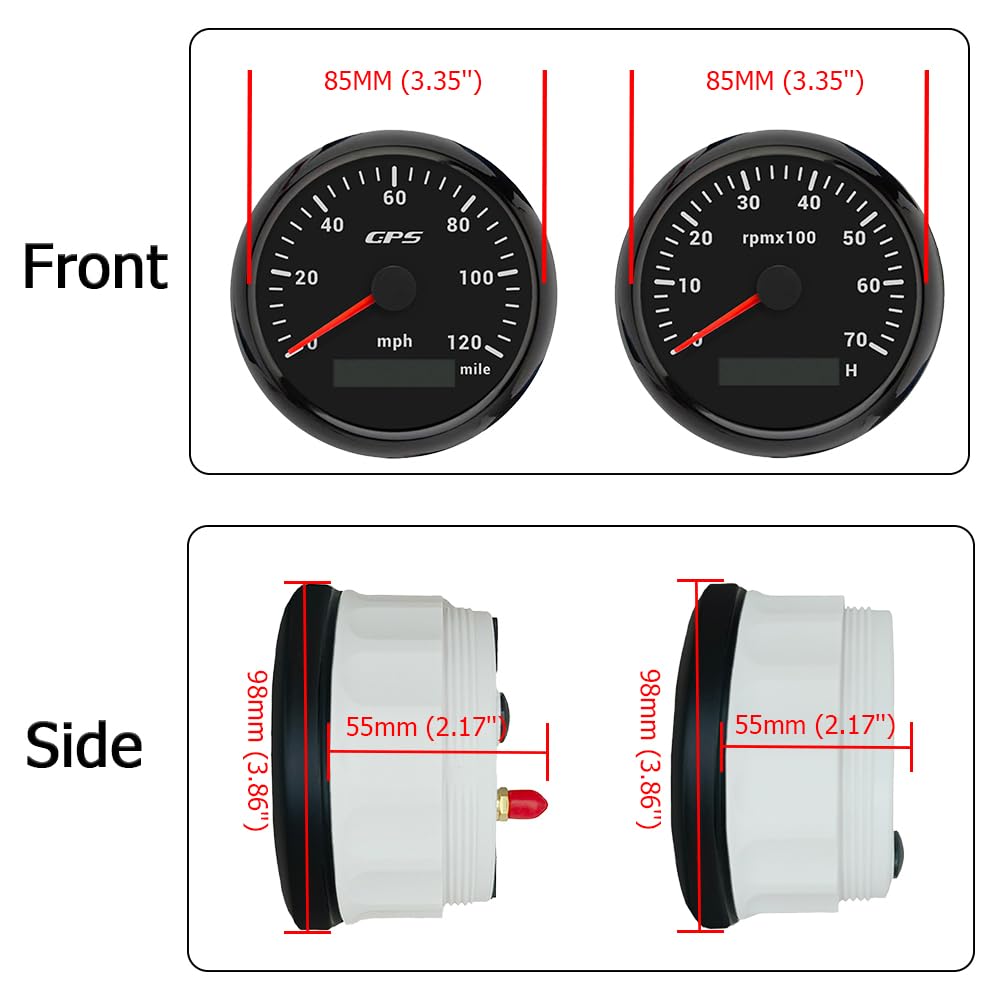

- Installtion: Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 55mm behind the panel to fit the gauge. Put the gauge in the hole and screw down.
- For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
- 9-32VDC(12VDC/24VDC) Working Voltage, 100% Waterproof and anti-fogging protection
| Manufacturer | ELING |
|---|---|
| Product Dimensions | 3.35 x 3.35 x 2.17 inches; 1.76 Pounds |
